AD02M02FS2 Tolerance

Support Q&A
1

------Question for AD02M02FS2------

Hello, I was wondering what the dimensions and tolerances are for the outer diameter of the screw thread, and for the flat surface to the center of the component.

Thanks in advance!

2

Hello,

Welcome to the TechForum.

On the second page of this datasheet you will see a good measurement reference and I can see if there is information on the tolerance of this parts length’s and width’s.

Thank you
Ryan

3

Hello Ryan,

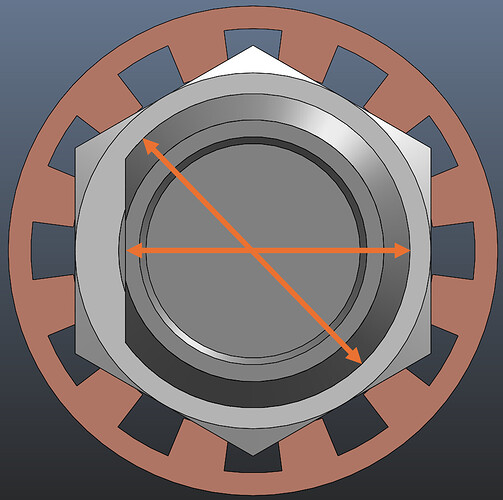

Perhaps my message was a bit unclear, therefore a picture of the dimensions of interest for me. These are not listed on your provided datasheet. Could you provide me with these dimensions and tolerances?

image1132×1125 142 KB

Thanks in advance!

4

I can sure request this from our PDCe tech’s and see if they can measure one for you. I will get back to you as soon as I can.

Thank you
Ryan

5

I was just made aware this part is offered from our Market Place options, and this may not be available for us to measure. These parts are stored off site so I will email them and see if this is possible.

We usually say 1-2 days to hear back so hopefully I get this answered and back out to you as soon as possible.

Thankyou
Ryan

6

Thank you for your effort! I look forward hearing from you with this information.
