Sierra Electronics - Leader and Trailer Packaging Media for SMD Devices

[Jeff_2258]

All the parts and tools for assembling reeled products with a leader and trailer for use in a pick-and-place machine can be purchased from Sierra Electronics. Their assembly videos below will help to show how easy it is to prepare cut tape products by adding a leader and trailer.

Flat Punched Carrier Tape For Leaders and Trailers

Flat Punch Leaders

White Leader 8mm Tape	Thickness
FPWLT8-0267	Small Sprocket, 0.60mm - 18" Pcs.
FPWLT8-0267R	Small Sprocket, 0.60mm - Roll
FPWLT8-026711	Large Sprocket, 0.95mm - 18" Pcs.
FPWLT8-026711R	Large Sprocket, 0.95mm - Roll

White 8mm Flat W/Cover Tape	Thickness
FPWLT8-0226	0.60mm - 18" Pcs. - Tube
FPWLT8-0226R	0.60mm - Roll
FPWLT8-022612	0.95mm - 18" Pcs. - Tube
FPWLT8-022612R	0.95mm - Roll

Clear Flat W/Cover Tape	Black Flat W/Cover Tape		Size
FPCTCL8-0267	FPCT8-0267		8mm 18" Pcs. - Tube
FPCTCL8-0267R	FPCT8-0267R		8mm - Roll
FPCTCL12-0267	FPCT12-0267		12mm 18" Pcs. - Tube
FPCTCL12-0267R	FPCT12-0267R		12MM - Roll
FPCTCL16-0267	FPCT16-0267		16mm 18" Pcs. - Tube
FPCTCL16-0267R	FPCT16-0267R		16mm - Roll
FPCTCL24-0267	FPCT24-0267		24mm 18" Pcs. - Tube
	FPCT24-0267R		24mm - Roll
	FPCT32-0267		32mm 18" Pcs. - Tube
	FPCT32-0267R		32mm - Roll
	FPCT44-0267		44mm 18" Pcs. - Tube
	FPCT44-0267R		44mm - Roll
	FPCT56-0267		56mm 18" Pcs. - Tube
	FPCT56-0267R		56mm - Roll





SMD Double Splice Tape

Double Splice Tapes

• No Tool Required, used to splice 8, 12, 16, 24, 32, and 44mm SMD Flat Tape.
• Only the hyperlinked parts are what we can currently order

‎Blue‎‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎ ‎ ‎ ‎ ‎ ‎ ‎‎ ‎ ‎ ‎ ‎ ‎ ‎‎‎‎‎	‎Green‎‎ ‎ ‎ ‎‎ ‎‎ ‎ ‎ ‎ ‎ ‎‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎	‎Yellow‎ ‎ ‎ ‎ ‎‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎‎	‎Green with Guide‎	‎ESD ‎Black‎‎‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎	‎Size‎‎‎‎‎	‎
		4DST-3.0740			4mm
‎8DST-3.0740BLUE‎	8DST-3.0740V‎	8DST-3.0740	8DST-3.0740GE	8DST-3.0740BK	8mm
12DST-3.0740BLUE	12DST-3.0740V	12DST-3.0740		12DST-3.0740BK	12mm
16DST-3.0740BLUE	16DST-3.0740V	16DST-3.0740		16DST-3.0740BK	16mm
24DST-3.0740BLUE	24DST-3.0740V	24DST-3.0740		24DST-3.0740BK	24mm
		32DST-3.0740			32mm
		44DST-3.0740			44mm

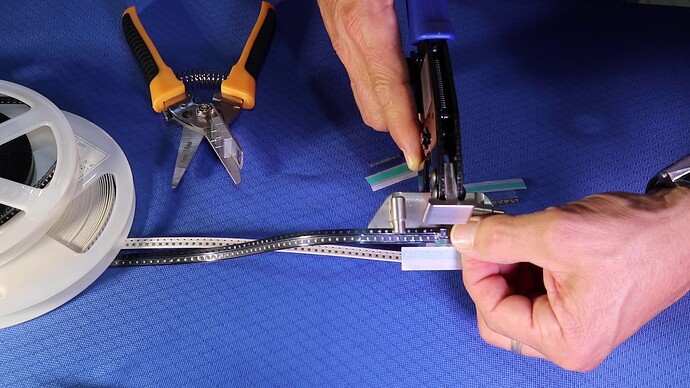

SMD Tape with Shim Splice Assembly Video

CT-51302 - SMD Carrier Cutting Tool	TS-41097 Tape Splicer Tool



Blue	Yellow	Green	Clear	Size
STSS-2260608B	STSS-2260608	STSS-08EASYGR	STSS-2260608CLEAR	0.31" (8.00mm)
STSS-2260612B	STSS-2260612	STSS-12EASYGR	STSS-2260612CLEAR	0.47" (12.00mm)
STSS-2260616B	STSS-2260616	STSS-16EASYGR	STSS-2260616CLEAR	0.63" (16.00mm)
STSS-2260624B	STSS-2260624	STSS-24EASYGR	STSS-2260624CLEAR	0.94" (24.00mm)





Panasonic, arrow right, splice detection tape with shim

Panasonic Splicing Tapes

	Size
STSS-2260608AR	0.31" (8.00mm)
STSS-2260612AR	0.47" (12.00mm)
STSS-2260616AR	0.63" (16.00mm)
STSS-2260624AR	0.94" (24.00mm)
STSS-2260632AR	1.26" (32.00mm)
STSS-2260644AR	1.73" (44.00mm)
STSS-2260672AR	2.83" (72.00mm)





Splicing Carrier Tape

Splicing Larger Carrier Tape sizes 32mm-72mm

Cover Tape Connector can be used with or without a shim

Red	Yellow	Black	Brown	Blue	Size - Qty (1K per *Box or **Roll)
8MS-41097S	8MS-41097THS	8MS-41097BKS	8MS-41097BKS	8MS-41097BLUE-S	8mm *
8MSWH-41097S	8MSWH-41097THS	8MSWH-41097BKS	8MSWH-41097BRS	8MSWH-41097BLUE-S	8mm with holes *
12MS-41097S	12MS-41097THS	12MS-41097BKS	12MS-41097BRS	12MS-41097BLUE-S	12mm *
16MS-41097S	16MS-41097THS	16MS-41097BKS	16MS-41097BRS	16MS-41097BLUE-S	16mm *
24MS-41097S	24MS-41097THS	24MS-41097BKS	24MS-41097BRS	24MS-41097BLUE-S	24mm *
32MS-41097S	32MS-41097S	32MS-41097BKS	32MS-41097BRS	32MS-41097S	32mm *
44MS-41097S	44MS-41097THS	44MS-41097BKS	44MS-41097BRS	44MS-41097BLUE-S	44mm *
56MS-41097S	56MS-41097THS	56MS-41097BKS	56MS-41097BRS	56MS-41097BLUE-S	56mm *
8MS-41097	8MS-41097TH	8MS-41097BK	8MS-41097BR	8MS-41097BLUE	8mm **
8MSWH-41097	8MSWH-41097TH	8MSWH-41097BK	8MSWH-41097BR	8MSWH-41097BLUE	8mm with holes **
12MS-41097	12MS-41097TH	12MS-41097BK	12MS-41097BR	12MS-41097BLUE	12mm**
16MS-41097	16MS-41097TH	16MS-41097BK	16MS-41097BR	16MS-41097BLUE	16mm **
24MS-41097	24MS-41097TH	24MS-41097BK	24MS-41097BR	24MS-41097BLUE	24mm **
32MS-41097	32MS-41097TH	32MS-41097BK	32MS-41097BR	32MS-41097BLUE	32mm **
44MS-41097	44MS-41097TH	44MS-41097BK	44MS-41097BR	44MS-41097BLUE	44mm **
56MS-41097	56MS-41097TH	56MS-41097BK	56MS-41097BR	56MS-41097BLUE	56mm **





Splice Shims

Stainless Splice Shim

SS-3210 Brass Shim	SS-8000 - Stainless Steel Shim





Mobile Splice Cart

Mobile Splice Cart

CART-41097	2STCART-0417	SCA-41097







Fuji Splice Tapes

FUJI Double Splice	Size
4FU-0417	4MM
8FU-0417	8MM
12FU-0417	12MM
16FU-0417	16MM
24FU-0417	24MM
32FU-0417	32MM

Photos and videos compliments of Sierra Electronics.
