How to wire adjustable inductor (5 pins) T1038Z

Support Q&A
1

------Question for A119ANS-T1038Z Please Put your question below------
Hi !

I confuse how to wire the adjustable inductor with 5 pins (T1038Z) (link below) to the breadboard? which is the role of each pin ?

Thank you!

Best!
ALGA

A119ANS-T1038Z Toko America Inc. | Inductors, Coils, Chokes | DigiKey

2

Hi anhluuhg ,

TKS2258CT-ND is the most similar one found in our system. Its Datasheet, although a different series, does show a “Z Connection” wiring diagram, which assuming A119ANS-T1038Z would be.


3

Hi anhluuhg,

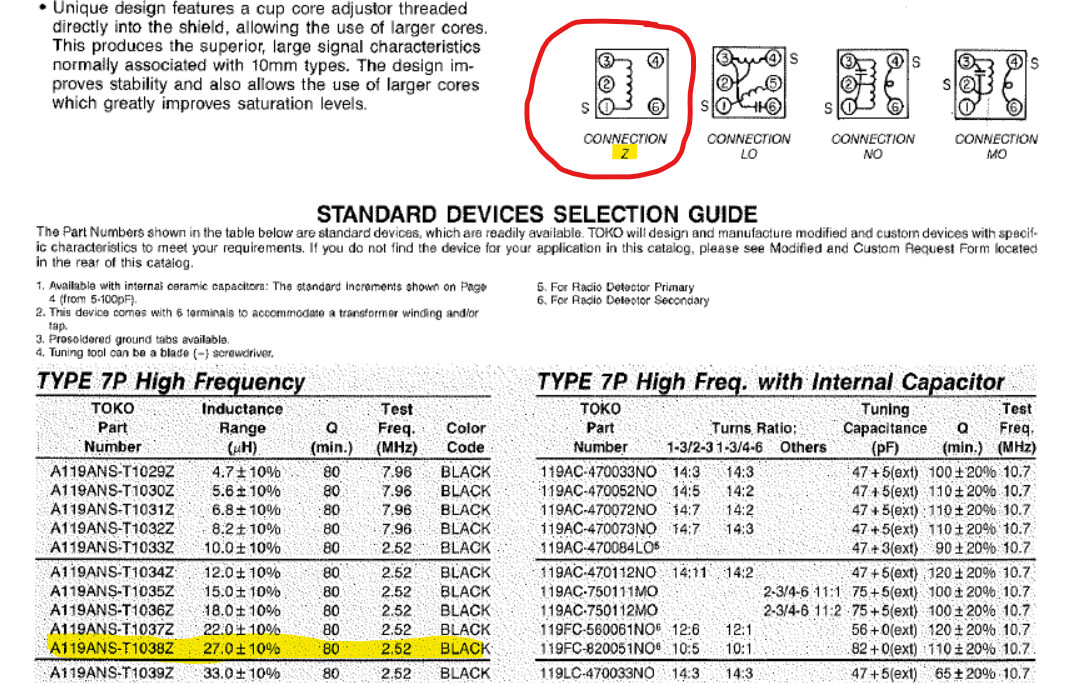

I found this from an old archived document:

image1067×683 276 KB
